The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments. Wherever your music may take you, DBR10 loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. Comprised of a 10-inch DBR loudspeaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor monitoring, and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for a DBR10 speaker to take your performance to the next level.
High-Efficiency 700W Class-D Amplifiers
The DBR10’s lightweight, high-performance Class-D amplifier is capable of an output level of 700W.
Custom Designed Transducer
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the DBR10 features a 1-Inch compression driver that produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet
DBR10 features a compact, lightweight, and durable plastic cabinet which offers the highest level of portability. The sleek steel grille bolsters cabinet durability and protects the internal components while newly designed ergonomic handles provide effortless transportation and system setup.

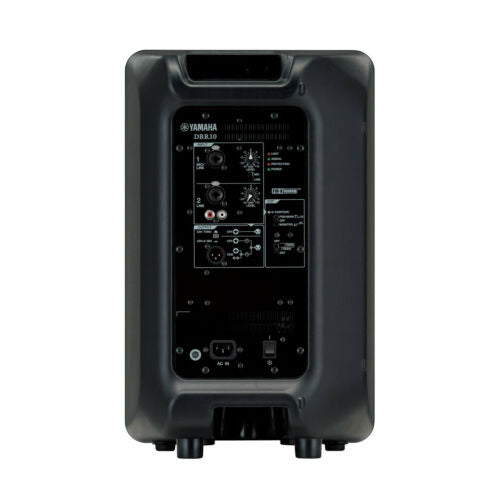

Easy-to-Use Onboard 2-Channel Mixer
DBR10 speaker has two input channels. CH1 has a combo jack that accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
Smart Enclosure Design for Floor Monitoring
DBR10 speaker features an optimized 50-degree wedge angle for floor monitoring.
Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.
Physical
| Color | Black |
- H: 90-degree
- V: 60-degree
- LF:
- Diameter:10-inch cone
- Voice coil: 2-inch
- Magnet: Ferrite
- HF:
- Diaphragm:1-inch
- Type: 1-inch throat compression driver
- Magnet: Ferrite
- W: 12.1-inch (308mm)
- H: 19.4-inch (493mm)
- D: 11.4-inch (289mm)
Yamaha DBR10 Powered Speaker
General Specifications
| Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type |
| Frequency range (-10dB) | 55Hz to 20kHz |
| Nominal coverage | |
| Components | |
| Crossover | 2.1kHz: FIR-X tuning (linear phase FIR filter) |
| Output power | Dynamic: 700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W) |
| Maximum output level (1m; on axis) | 129dB SPL |
| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Heat dissipation | Fan cooling, 4 speeds |
| Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
| Power consumption | 60W(1/8 Power Consumption), 18W(Idle) |
| Cabinet material | Plastic |
| Finish | Black |
| Handle | Top x 1 |
| Flying and mounting hardware | Bottom x 2 (Fit for M8 x 15 mm eyebolts) |
| Pole socket | 35mm (Bottom x 1) |
| Dimensions | |
| Net weight | 23.2 lb (10.5 kg) |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
